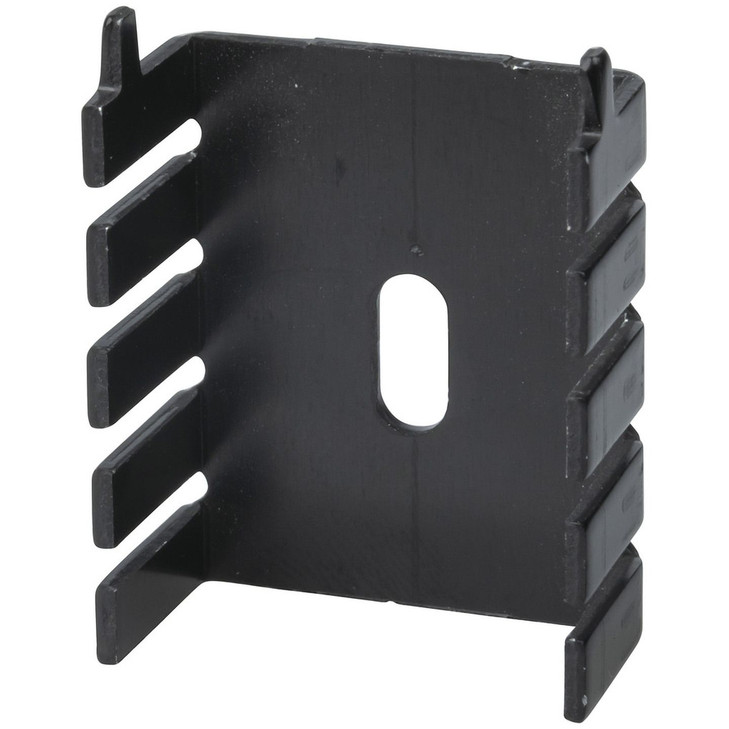

These PCB mount heatsinks have two tinned pins to aid in fastening the sink to a board or surface.
- Pins 2mm dia. x 3mm long
Heatsinks
| Heatsink Thermal Resistance | 19.0 °C/W |
|---|---|
| Heatsink Mounting Method | PCB |
| Specific Application | TO-220 |
| Heatsink Fins | 2.0 pc |
| Component Mount Area Height | 16.0 mm |
| Cooling Fan Mount Size | 21.8 mm |
Product Dimensions
| Length | 15.8 mm |
|---|---|
| Width | 16.0 mm |
| Height | 21.8 mm |
Packaged Dimensions
| Packaged Dimensions | 2.7cm(Length) x 1.6cm(Width) x 1.5cm(Height) |
|---|
