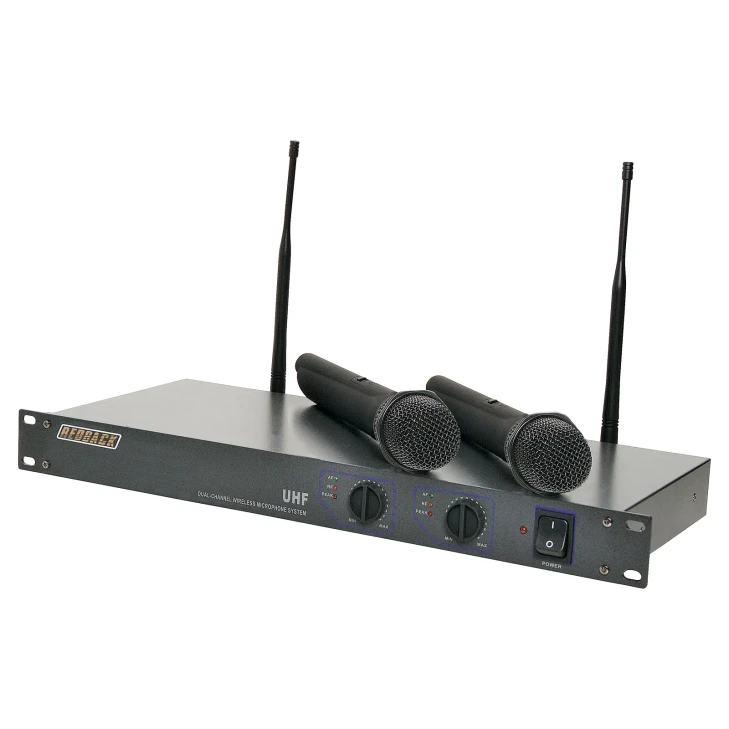

2 channel fixed frequency UHF wireless microphone systems, including handheld microphone and belt pack microphone. Ideal for systems requiring the freedom of two independent wireless microphones at an economical price. The sturdy 19” rack mount cabinet is fitted with two fixed frequency wireless receivers. The miniaturised SMD construction and unique shielding technique, plus individual squelch control, ensures excellent performance and minimal external interference. Each receiver features an independent front panel level control, AF, RF and peak indicators. Outputs are provided for each channel via 3 pin XLR, plus a mixed output via 6.35mm jack. The aerials are removable for remote mounting if required. Includes receiver, one handheld microphone and a lavalier belt pack (lapel mic included). A range of 50m or more is obtainable in ideal conditions. The perfect system for wedding ceremonies, DJs, sporting clubs, schools, restaurants and function centres.
Note: Includes 4 x AA batteries (2 per transmitter)
Note: The box contains a 6.35 to 6.35mm microphone cable for the mixed output but you will need to purchase 2 x XLR leads if you are using the individual balanced outputs
Note: The belt pack supplied with this model is only compatible with the included tie clip microphone. Due to pin out differences, this belt pack is not compatible with other Redback/Altronics microphones.
Box Contents
1x 2 Channel Receiver
1x Handheld Microphone
1X Lavalier Belt Pack
1x Lapel Mic
2 x Aerials
1x 6.35 to 6.35mm Microphone Cable
1x Plug Pack
1x Instruction Manual
4 x AA batteries
Features:
- Operating frequencies 520 / 524.30MHz
- 19” 1RU rack mount case
- Steel enclosure construction
- Removable aerials
- Individual 3 pin XLR outputs
- Mixed 6.35mm jack output (1m cable included)
- Front panel level controls
- Tone squelch circuit for noise reduction
- RF, AF & peak signal LEDs
- Range up to 50m in ideal conditions
Specifications:
Receiver:
Carrier frequency: 520MHz & 524.30MHz UHF band
Frequency stability: ±0.005%
Oscillator: PLL Synthesised
Receiving sensitivity: 10µV over 80dB S/N ratio
Image and spurious rejection: 80dB minimum
Selectivity: >50dB
Modulation mode: FM
IF Frequency: 1st: 243.95MHz, 2nd: 10.7MHz
Tone signal: 32.768kHz
Signal to noise ratio: >94dB, at 20kHz deviation and
60dBµV antenna input
Audio frequency response: 80Hz to 16kHz
Total harmonic distortion: less than 1.0% (at 1kHz)
Audio outputs: Balanced and unbalanced outputs for single channel
Switching diversity (Mic = 20dB / Line = 0dB)
Power supply: 12V DC
Mechanical:
Dimensions: 480W x 170D x 45H mm
Transmitter:
Carrier frequency range: 566 - 575MHz UHF band
Frequency stability: ±0.005%
Microphone capsule
Handheld: Dynamic unit
Beltpack: Lavalier condenser
Battery: 3V DC (2 x 1.5V AA batteries) or 2.4V DC (2 x 1.2V AA rechargeable)
