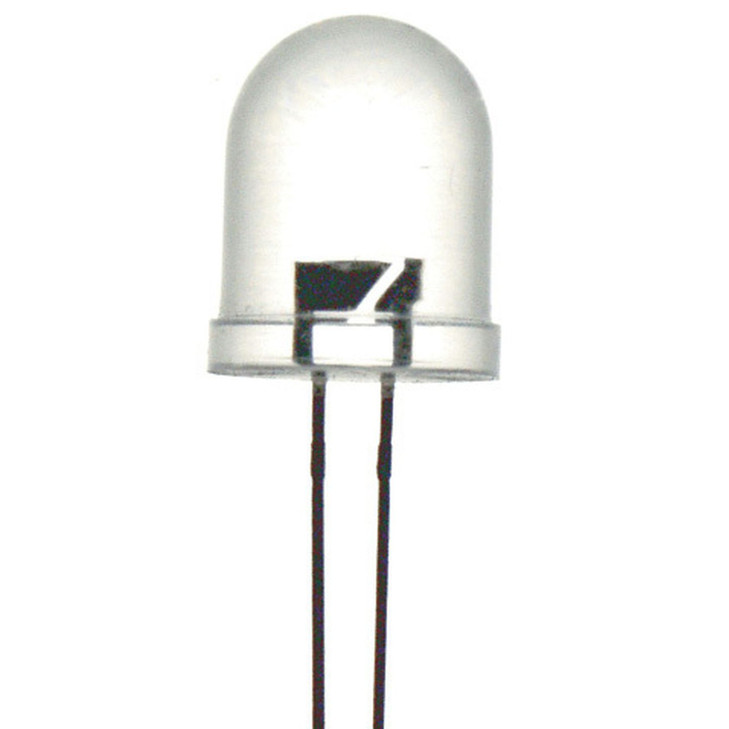

Yellow LED 10mm DIF 210MCD
LED Components
| LED Type | 10mm Standard LED |
|---|---|
| Light Colour | Yellow |
| Light Wavelength | 590.0nm,590.0nm |
| V<sub>f (typ)</sub> - Typical Forward Voltage | 2.0 V |
| I<sub>f (typ)</sub> - Typical Forward Current | 20.0 mA |
| Intensity | 210.0mcd,210.0mcd |
| Viewing Angle | 60.0 ° |
| Lens Type | Diffused |
| Resistor for 5VDC | 150.0 Ω |
| Resistor for 9VDC | 360.0 Ω |
| Resistor for 12VDC | 470.0 Ω |
| Illumination Type | Single Colour |
Active Component
| active mount type | Through Hole |
|---|---|
| active connector type | Solder Legs |
| component package | radial |
| active number of legs | 2.0 count |
Product Dimensions
| Diameter | 10.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 1.0cm(Length) x 1.2cm(Width) x 1.2cm(Height) |
|---|
