Overview

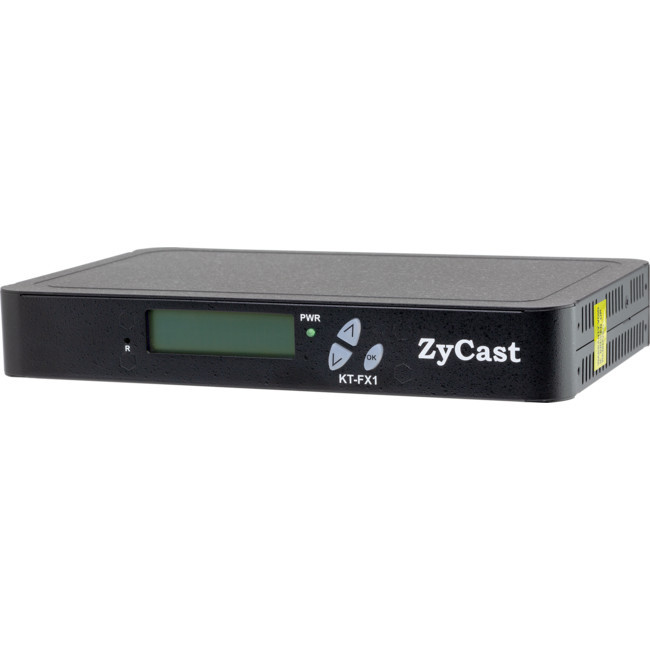

KT-FX1 SINGLE INPUT FOXTEL MODULATOR
The KT-FX1 is a Foxtel-approved single input (HDMI) HD digital modulator that encodes HDMI signal to any DTV channel.
Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable.
Programming of the KT-FX1 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).
Specifications
Specifications
| Foxtel Approved Number | F31059 | |
| Input | Number of Inputs | 1 |
|---|---|---|
| Video Input | HDMI | |
| Video Input Level | 0.7 - 1.4V (Peak to Peak) | |
| Video Mode | PAL | |
| Audio Input | Stereo | |
| Audio Input Level | 0.4 to 4.8V (Peak to Peak) | |
| Output | Frequency Range | 177.5 MHz to 816.5 MHz (6 to 69) |
| HDMI Loop Through | No | |
| Output Level | 85dB | |
| MER | >38dB | |
| Delayed Audio | Delayed Audio Output | No |
| Modulation | Video Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compression | H.264 AVC (MPEG-4) | |
| Audio Compression | MPEG Layer II / AAC | |
| Video Bitrate SD | 1Mbps to 9Mbps (Default 5Mbps) | |
| Video Bitrate HD | 12Mbps to 24Mbps (Default 24Mbps) | |
| LCN | AU (APN) | |
| Carrier | 2K / 8K | |
| GI | 1/32 | |
| FEC | 7/8 | |
| Constellations | 16 QAM / 64 QAM | |
| Management / Programming | Front LCD | Yes |
| Web GUI | Yes | |
| Power Supply Type | External | |
| Power Supply | 12V DC 1.5AMP | |
| Redundant PSU | No | |
| Operating Temperature | 0°C to +45°C | |
| Storage Temperature | −0°C to +60°C | |
| Packaging | Dimensions | 236mm × 145mm × 34mm |
| Weight | 0.88kg | |
| Warranty | 3 years | |
