10k Ohm / 10k Ohm Bridging Input Transformer

This unit is designed as an isolation unit to prevent hum loops in audio systems. Balanced 10kΩ to balanced 10kΩ 3 pin male XLR with ground. lift and capacitive coupling switch. Dimension Drawing

Impedance: 10k ohm / 2 ohm CT Fly lead length: 9mm PCB hole size: 0.5mm

Used for coupling audio circuits. These transformers help prevent earth loops, hum etc. Essential coupling device where DC isolating is required. Housed in a mu-metal can to guard against stray hum...

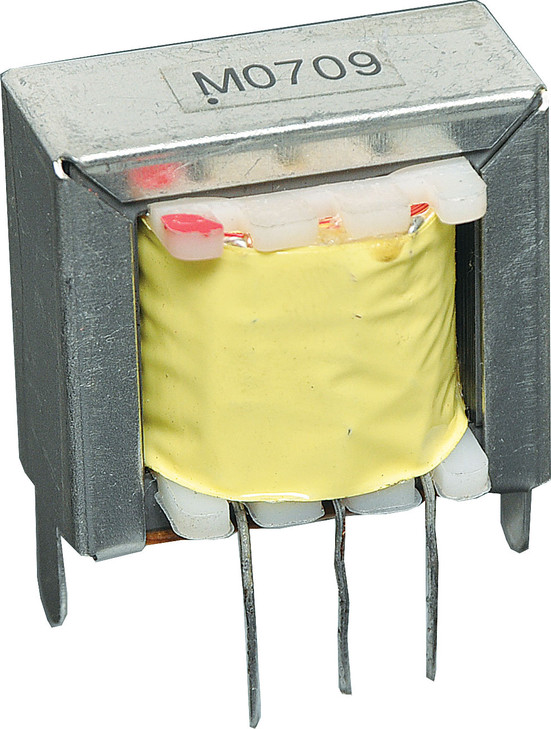

Impedance: 600Ω / 600Ω Freq. response: 20Hz - 30kHz Insertion loss: -0.5dB Max level: +20dBm @ 20Hz Weight: 63g

This unit can be used for balancing a line level signal (converting a 10kΩ unbalanced signal to 600Ω balanced) and as an isolation unit to prevent hum loops in audio systems. Dimension Drawing
