600 Ohm / 10k Ohm Shielded Microphone Transformer

Used for coupling audio circuits. These transformers help prevent earth loops, hum etc. Essential coupling device where DC isolating is required. Housed in a mu-metal can to guard against stray hum...

Impedance: 10kΩ / 10kΩ Freq. Response: 20Hz - 30kHz Insertion Loss: -0.5dB Weight: 63g

This unit can be used for balancing a line level signal (converting a 10kΩ unbalanced signal to 600Ω balanced) and as an isolation unit to prevent hum loops in audio systems. Dimension Drawing

Impedance: 600 Ohm line, 600 Ohm equip Turns Ratio: 1:1 Max Level: 0dBm @ 300Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 300Hz - 10kHz Return Loss: >15dB, 300Hz - 5kHz Max Unbalanced DC:...

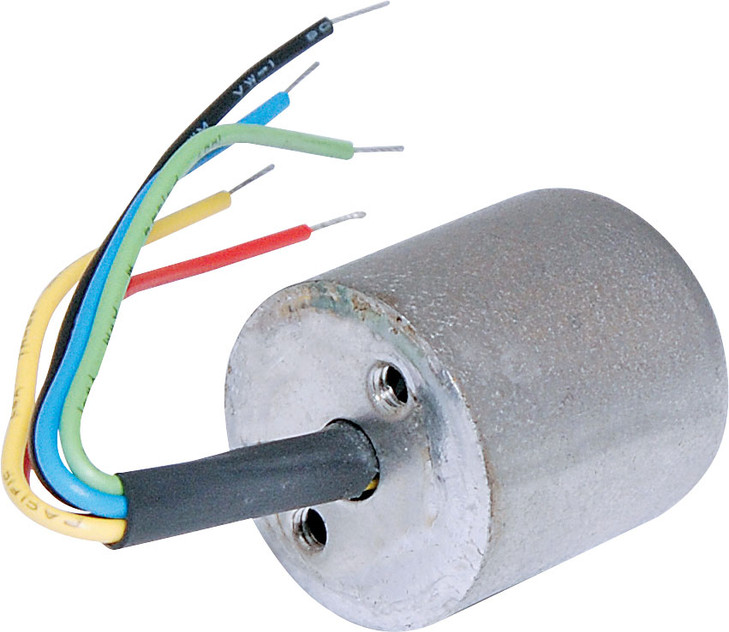

Impedance: 600Ω / 600Ω Freq. response: 20Hz - 30kHz Insertion loss: -0.5dB Max level: +20dBm @ 20Hz Weight: 63g
