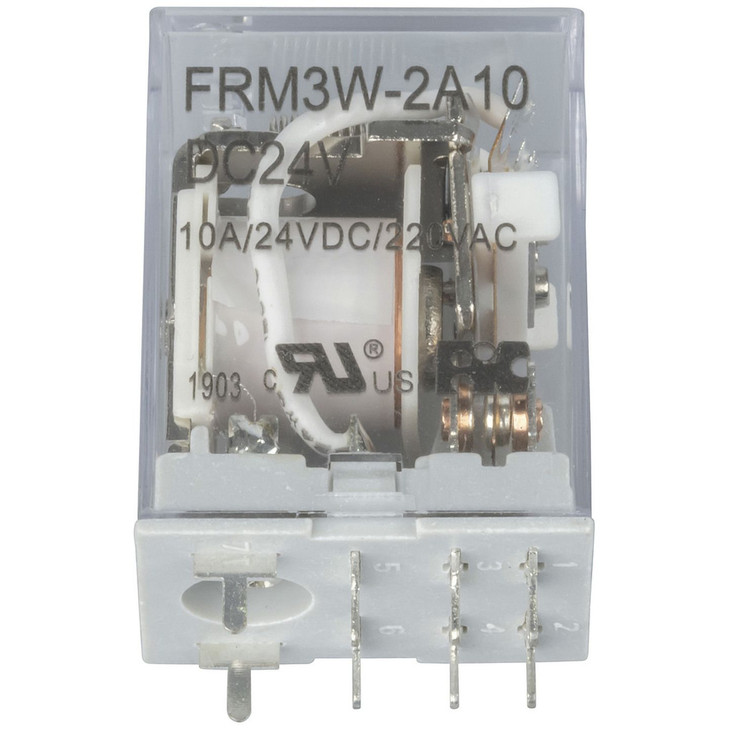

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle. Can also be installed with direct connection using 5mm spade lugs.
Relay
| Device Type | Cradle Mounting Relay |
|---|
| Coil Resistance | 160.0 Ω |
|---|
| Coil Current | 75.0 mA |
|---|
| Contact format | DPDT |
|---|
| Operation Time | 25.0 ms |
|---|
| AC Contact Voltage | 240.0V,240.0V |
|---|
| DC Contact Voltage | 24.0V,24.0V |
|---|
| AC Switching Current (Opening) | 10.0A-10.0A |
|---|
| DC Switching Current (Opening) | 10.0 A |
|---|
| Nominal Voltage | 12.0 V |
|---|
| Input | DC |
|---|
Power Source Details
| DC Current Draw | 75.0 mA |
|---|
| DC Voltage | 12.0 V |
|---|
| Item connection | Spade Terminals |
|---|
Product Dimensions
| Length | 20.0 mm |
|---|
| Width | 27.0 mm |
|---|
| Height | 35.0 mm |
|---|
Packaged Dimensions
| Packaged Dimensions | 2.5cm(Length) x 2.0cm(Width) x 4.5cm(Height) |
|---|
