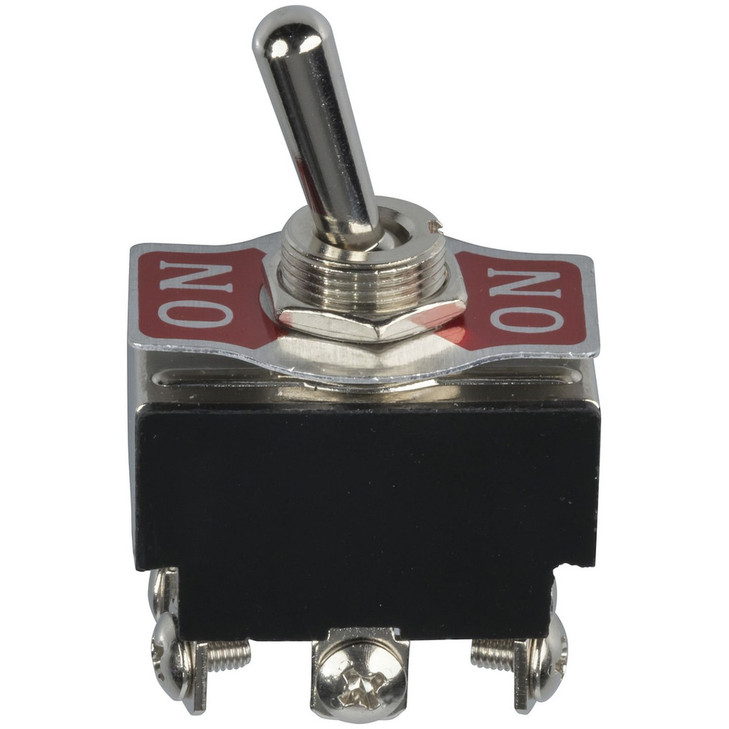

Huge 6A 250VAC rating (10A 125VAC), chrome toggle with on/off indicator plate.
- DPDT centre off.
- Screw wire terminals. Same physical size as ST-0575 .
Electromechanical Switch
| Switch Type | Toggle |
|---|
| Poles / Contacts | 2.0 pole |
|---|
| Throws / Positions | 1.0 pos |
|---|
| Centre Off | true |
|---|
| Cycle Life | 40000.0 cycles |
|---|
| Contact Resistance | 10.0 Ω |
|---|
| Insulation Resistance | 1000.0 Ω |
|---|
| Dielectric Strength | 1000.0 V |
|---|
| Switch Connection | Screw Terminal |
|---|
| Actuator Length | 18.5 mm |
|---|
| Actuator Width | 19.0 mm |
|---|
DC Voltage Rating
DC Current Rating
Packaged Dimensions
| Packaged Dimensions | 5.2cm(Length) x 3.4cm(Width) x 2.3cm(Height) |
|---|
