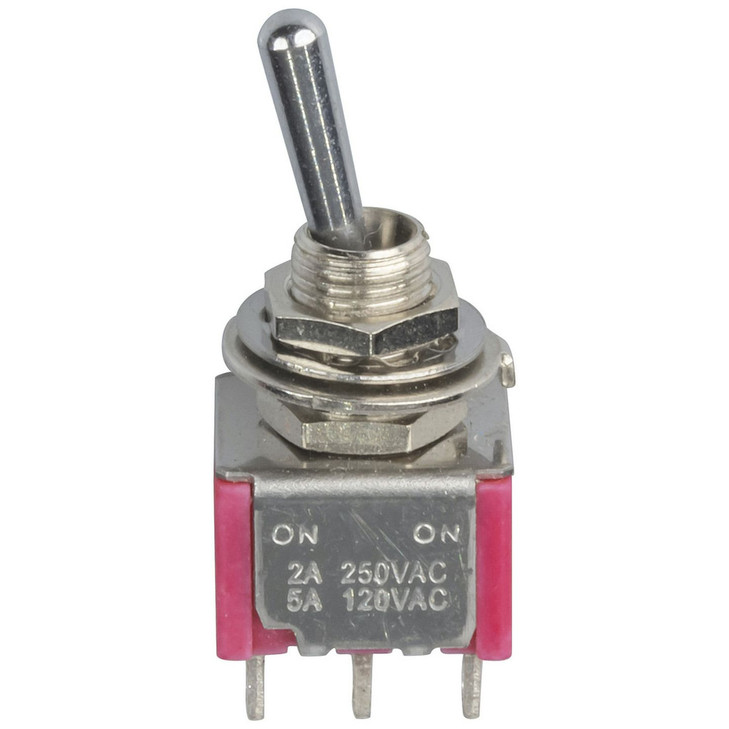

DPDT panel mount toggle switch.
Electromechanical Switch
| Switch Type | Toggle |
|---|---|
| Poles / Contacts | 2.0 pole |
| Throws / Positions | 1.0 pos |
| Cycle Life | 40000.0 cycles |
| Contact Resistance | 10.0 mΩ |
| Insulation Resistance | 1000.0 Ω |
| Dielectric Strength | 1000.0 V |
| Actuator Length | 19.5 mm |
| Actuator Height | 12.0 mm |
DC Voltage Rating
| DC Voltage | 250.0 V |
|---|
DC Current Rating
| DC current rating | 3.0 A |
|---|
Packaged Dimensions
| Packaged Dimensions | 2.8cm(Length) x 2.0cm(Width) x 4.6cm(Height) |
|---|
