This booster is ideal for installations requiring a high power zone amplifier. Ideal for use in shopping centers, pedestrian precincts, public transport facilities and convention centers. Operates on 240V ac and 24V dc for battery backup operation. Input is via 3 pin balanced XLR (1V). Level control is rear mounted to prevent tampering or accidental adjustment.
The circuit design includes protection features in case of output over voltage, over current and over temperature conditions. All are self resetting once the fault condition has been removed. Visual indication via front panel LEDs show amplifier status at all times. On demand fan cooling ensures reliable operation at all times.
Features
Multi-stage thermally cued fan cooling
Input signal presence indicator
Output peak limited
2U 19" rack mount (ears included)

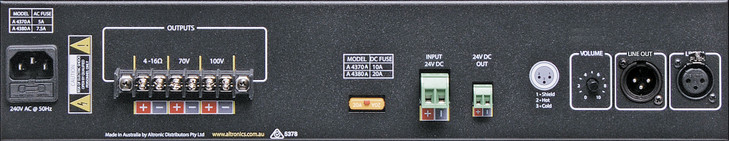

3 pin XLR input, 3 pin XLR loop out
Level control rear mounted
100V, 70V and 4 - 16Ω outputs
Thermal and overload protection
240V AC, or 24V DC operation
300mA 24V battery trickle charge
100% developed, designed & assembled in Australia.
Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support. Read more about our Australian Made products
Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service. Read more about our industry leading warranty.
