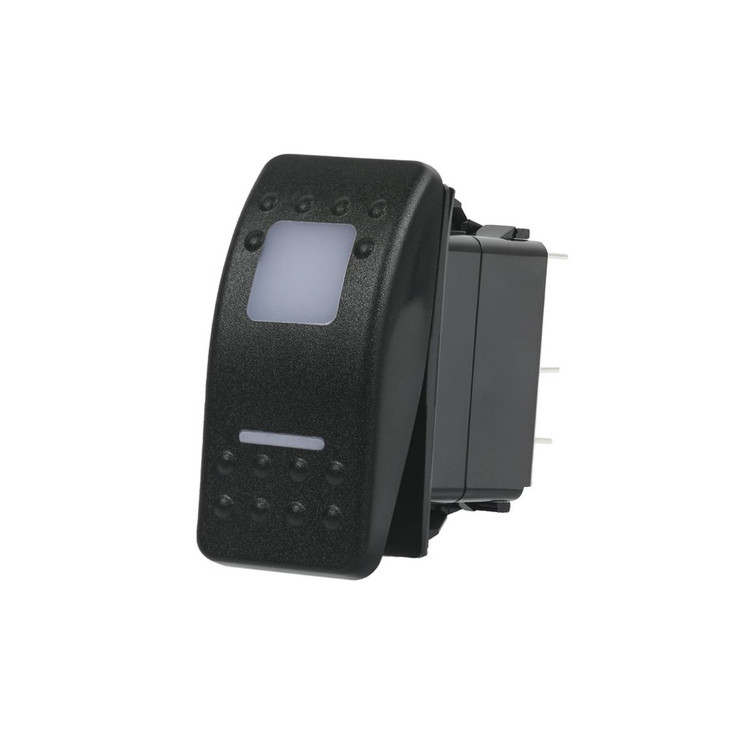

SPDT Dual Illuminated Rocker Switch with Labels and Interchangeable Covers Orange

These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great in your 4WD, RV, Caravan or any other application as well. The base switch supplied (rated at 12V 20A, 24V 10A) comes with a double-LED illumination (low in OFF, high in the ON position), a standard rocker cover and a standard range of decals to customise the switch to your application.  Typical decals are symbols for: windscreen wipers, horn, heater, etc; there are dozens of these decals included.

Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required.)

Switches
SK-0910 SPDT Rocker - White
SK-0912 SPDT Rocker - Red
SK-0914 SPDT Rocker - Blue
SK-0916 SPDT Rocker - Orange

Laser-etched rockers
SK-0920 "12V Power"
SK-0921 "Fridge"
SK-0922 "Aux Battery"
SK-0923 "Camper Power"
SK-0924 "Spot Lights"
SK-0925 "Horn"
SK-0926 "Rear View Camera"

Rocker Switches

Switch Type	Rocker
Switch Function	Locking On/Off
Mechanism Material	Plastic
Switch Connection	Spade Terminals
Switch Colour Coded	Orange
Nominal Voltage	12V
Illumination Colour	Orange
LED Connection	Spade Terminals
LED Type	LED
Illumination Position	Internal

Product Dimensions

Length	49.6 mm
Width	24.4 mm
Height	49.0 mm

Electromechanical Switch

Switch Type	Rocker
Poles / Contacts	1.0 pole
Throws / Positions	2.0 pos
Switch Function	Locking On/Off
Cycle Life	100000.0 cycles
Switch Connection	Spade Terminals
Switch Colour Coded	Orange
Pole Throw Type	SPDT

DC Voltage Rating

DC Voltage	12.0 V

DC Current Rating

DC current rating	20.0 A

In-built Illumination

Illumination Colour	Orange
Nominal Voltage	12.0V-12.0V
Connection	Spade Terminals

Packaged Dimensions

Packaged Dimensions	13.0cm(Length) x 8.2cm(Width) x 3.0cm(Height)
