3k Ohm / 3k Ohm Audio Coupling Transformer

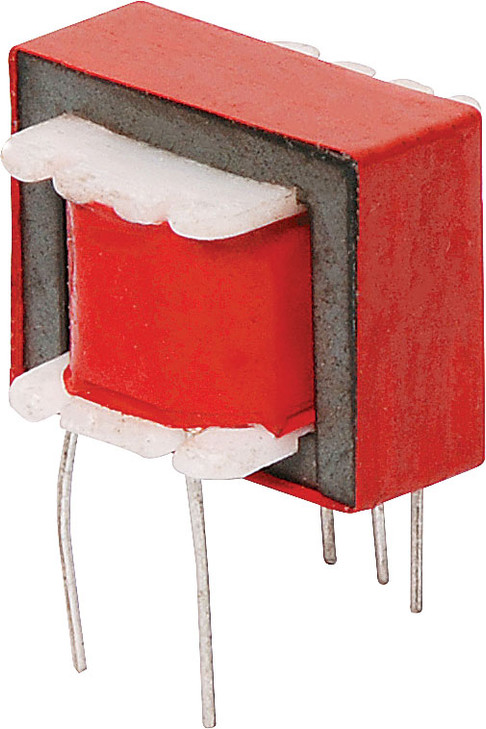

Impedance: 10k ohm / 2 ohm CT Fly lead length: 9mm PCB hole size: 0.5mm

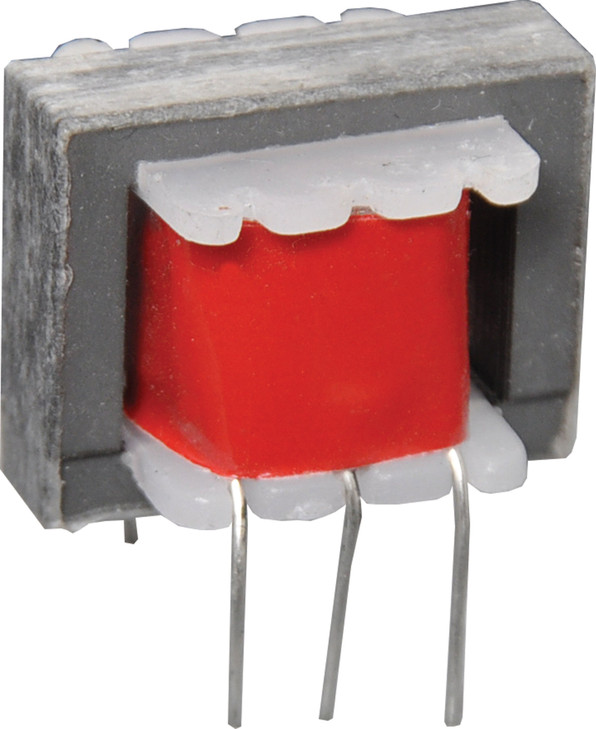

Impedance: 1kΩ CT / 8Ω Freq. Response: 300Hz-3kHz ±2.5dB Rated Power: 450mW Primary DC Resistance: 100Ω ±10% Secondary DC Resistance: 0.7Ω ±10% Fly Lead Length: 10mm

An audio coupling transformer is a type of transformer designed for use in audio circuits. Its primary function is to transfer an audio signal from one circuit to another while providing electrical...

Impedance: 10kΩ / 10kΩ Freq. Response: 20Hz - 30kHz Insertion Loss: -0.5dB Weight: 63g

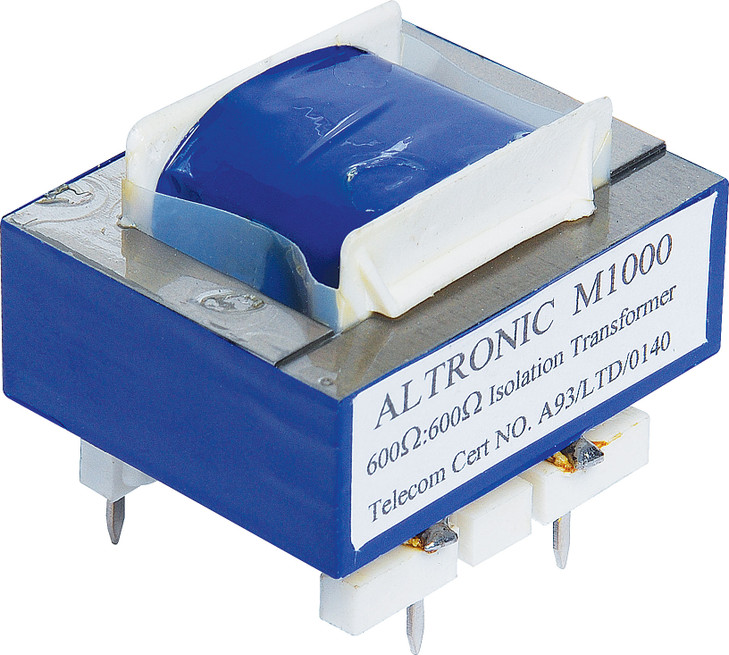

Impedance: 600 Ohm line, 600 Ohm equip Turns Ratio: 1:1 Max Level: 0dBm @ 300Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 300Hz - 10kHz Return Loss: >15dB, 300Hz - 5kHz Max Unbalanced DC:...
